  4. Single Door Magnetic Lock - PEAKMLV1200AS

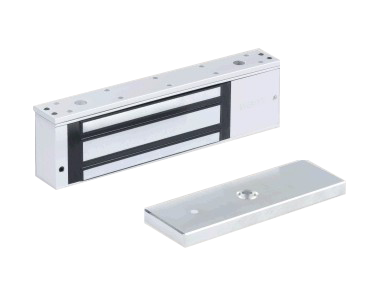

Single Door Magnetic Lock - PEAKMLV1200AS

peakml120
  Current Draw: 12V/500mA 24V/250mA Magnet Size (L x Wx H): 10.43" x 2.80" x 1.57" (265 x 71 x 40 mm) Armature Size (L x W x H): 7.28" x 2.36" x .51" (185 x 60 x 13 mm) Voltage: 12/24V DC Unit Weight: 9.9 LB Holding Force: 1200LB (500 kg) L&Z Bracket Kit: PEAKMLV1200LZ ...Read more



Downloads Spec Sheet
  • Description
  • Specifications



  • Current Draw: 12V/500mA 24V/250mA
  • Magnet Size (L x Wx H): 10.43" x 2.80" x 1.57" (265 x 71 x 40 mm)
  • Armature Size (L x W x H): 7.28" x 2.36" x .51" (185 x 60 x 13 mm)
  • Voltage: 12/24V DC
  • Unit Weight: 9.9 LB
  • Holding Force: 1200LB (500 kg)
  • L&Z Bracket Kit: PEAKMLV1200LZ
Weight: 9.9 lb
 Width: 2.8 in
 Length: 10.43 in
 Height: 1.57 in
